4X4 CNC Plasma Table with plasma Versa-cut 40 available at eastwood canada 98077
Shipping as to be determine depend of your location.
Eastwood Versa Cut 4X4 CNC Plasma Table With CNC Cut 40 and Machine Torch 98077
Description
The Eastwood Versa-Cut 4' X 4' CNC Plasma Table and Versa-Cut 40 Plasma Cutter deliver professional CNC plasma cutting features at a hobbyist price. The 49-in. x 43-in. cut area can handle material right from the mill. Rack-and-pinion design allows ±0.2mm accuracy from the X- and Y-axis motors and combines with automatic torch height control for clean, accurate cuts.
The CNC controller with torch height control, integrated limit switches, and waterbed are all included with the Eastwood Versa-Cut 4' X 4' CNC Plasma Table - features often unavailable or only offered at extra cost from similar machines.
Combo includes the Eastwood Versa-Cut 40 CNC Plasma Cutter With Machine Torch designed specifically for this table, allowing clean, precise cuts in steel, stainless steel, and aluminum material up to 1/4-in. thick.
The Eastwood Versa-Cut 4'x4' CNC Plasma Table with Versa-Cut 40 CNC Plasma Cutter and Machine Torch Features:
- Ready to use right out of the box

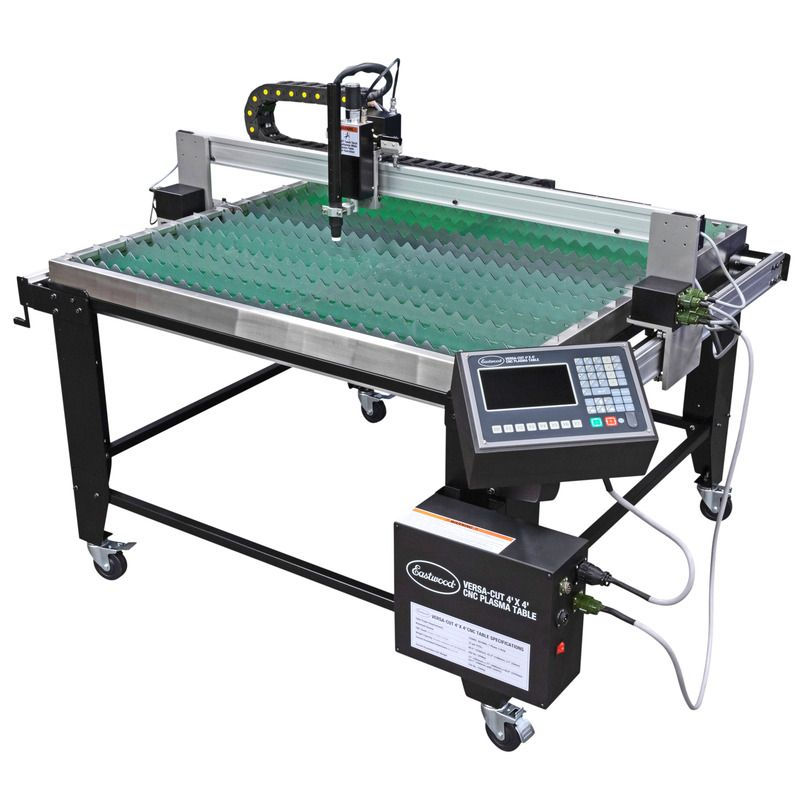

- Oversized waterbed accepts standard 4-ft. x 4-ft. pre-cut sheet materials
- Intuitive color LCD screen interface and USB drive for ease of use
- Dedicated CNC controller eliminates the need for a separate laptop
- User-friendly controller is easy for beginners, but packed with pro features
- Robust stepper motors for long life and accurate cut movements
- Large waterbed holds up to 33 gallons of cutting fluid
- Ready to assemble, all hardware included
- Includes locking casters for convenient movement and storage
- Strong steel frame assures a rock-solid foundation
- Rigid design for precise gantry movements and cutting accuracy
- CNC cutting table operates on 120V AC
- Torch travel is 49.2-in. X-Axis; 43.3-in. Y-Axis

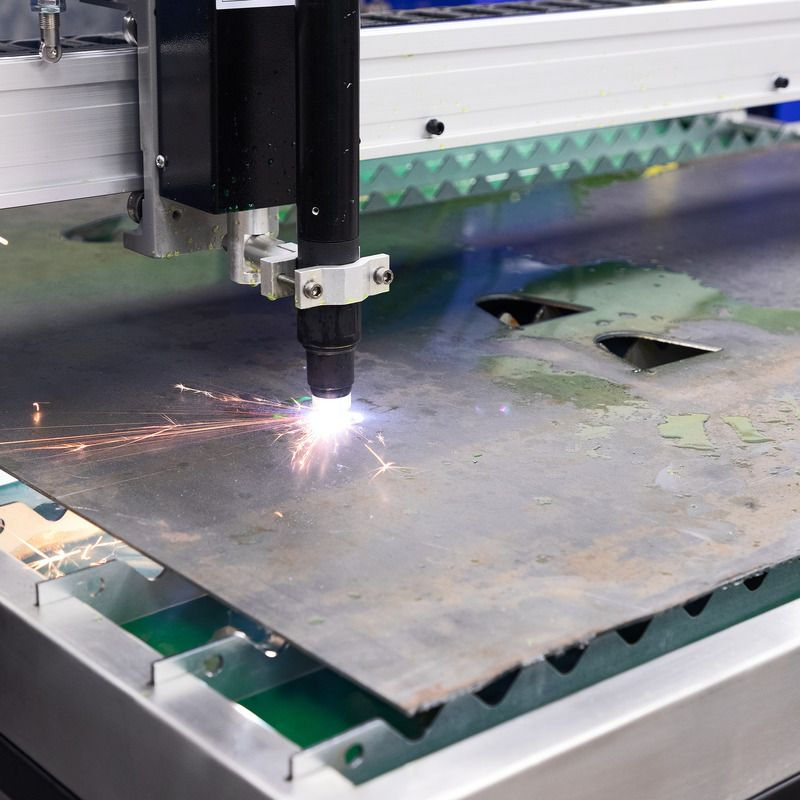

- Includes Versa-Cut 40 Plasma Cutter with application-specific machine torch
- Plasma cutter operates on 120V or 240V AC
- 60% duty cycle @ 40 amps on 240V (60% @ 30 amps on 120V)
- Long 20-ft torch cable
- Eastwood 3-year warranty
What's Included
Eastwood Versa-Cut 40 CNC Plasma Cutter and Machine Torch
Eastwood Versa-Cut 4’x4’ CNC Plasma TableInstructions & Guides
Click the links below to download the pdf manuals:
Versa-Cut 4 X 4 CNC Plasma Table Assembly and Operating Instructions
Eastwood Versa-Cut 40 Plasma Cutter Operating InstructionsClick here to learn more about and download Autodesk Fusion 360.
Click the links below to download Zip Files (both PC and Mac versions included within Zip file):
Eastwood CNC Plasma Table Post Processor Sheet CAM zip file.
Eastwood CNC Plasma Table Post Processor Fusion 360 zip file.FIRMWARE UPDATES: Click the links below to download Zip Files:
Eastwood Versa-Cut CNC Plasma Table THC Firmware V3.7 zip file.
Eastwood Versa-Cut CNC Plasma Table Firmware 5.4.13-FAT zip fileVersa-Cut 40 Specifications
Power Voltage: 120V±10% VAC, 50/60 Hz, 1 Phase - 240V±10% VAC, 50/60 Hz, 1 Phase Max Output No Load Voltage: 339V DC Rated Input Current: 120V: 19.7 Amps - 240V: 27.4 Amps Output Voltage: 120V: 86V to 92V - 240V: 86V to 96V Output Current Range: 120V: 15 to 30 Amps - 240V: 15 to 40 Amps Duty Cycle (%) 120V: 60% @ 16 Amps, 100% @ 15 Amps Duty Cycle (%) 240V: 60% @ 40 Amps, 100% @ 31 Amps Air Requirements: 5 - 7 CFM @ 60 psi Max Material Thickness: 3/8-in* Weight: 24.47 lbs. (11.1kg) Dimensions: 14.06-in x 8.46-in x 14.69-in (357mm x 215mm x 373mm) Plasma Table Specifications
*CNC plasma cutting material exceeding 1/4-in requires slow travel speeds and increased pierce time that will wear consumables rapidly. See manual for further guidance.
Power Requirements: 120±10% VAC, 50/60 Hz, 5A Plate Capacity: 48-in x 48-in x 0.25-in thick Weight Capacity (Includes workpiece and full Waterbed): 450 lbs. (204kg) CNC Torch Travel X-Axis: 49.2-in (1250mm) CNC Torch Travel Y-Axis: 43.3-in (1100mm) CNC Torch Travel Z-Axis: 2.1-in (54mm) Assembled Waterbed Dimensions X-Axis: 52.5-in (1335mm) Assembled Waterbed Dimensions Y-Axis: 52.8-in (1340mm) Assembled Waterbed Dimensions Z-Axis: 2.75-in (70mm) Overall Assembled Dimensions (W x D x H): 77-in [1955mm] x 71-in (1800mm) x 50.0-in (1270mm) (55.1-in (1400mm) w/casters) Overall Assembled Weight: 330 lbs. (150kg) Movement Accuracy: ±0.2mm Cutting Accuracy: ±0.5mm 66726Q.pdf
